Eliminate nuisance alarms and gain full situational awareness with Senstar MultiSensor, a compact, AI-powered intrusion detection system. It leverages an embedded sensor fusion engine and multiple sensing technologies to provide the best information for the right decisions at the right time. Senstar MultiSensor Cascade Plus builds upon on the first-generation of Senstar MultiSensor by adding support for device daisy chaining, as well as PoE support for third party devices.
A new approach to threat detection, the embedded Sensor Fusion Engine synthesizes data from multiple sensing technologies (short range radar, PIR, accelerometer, high frequency vibration, and video) to understand the full context of when an event occurs. This results in the highest probability of detection and situational awareness.
Senstar MultiSensor uses an embedded Sensor Fusion Engine and multiple sensing technologies (short-range radar, image sensor, dual PIR, accelerometer and high frequency sensor). The embedded Sensor Fusion Engine intelligently performs a threat analysis based on the data obtained from each sensor, taking into account intrusion training data, pattern analysis, relevance, history and background noise. The result is a system that can reliably detect intrusions under difficult conditions including low light, high wind, rain, snow, fog and stealth attacks.
Senstar MultiSensor contains an AI-powered Sensor Fusion Engine that intelligently performs a threat analysis based on the best data available from each sensor. It takes into account intrusion training data, pattern analysis, relevance, history, and background noise.
Senstar MultiSensor connects to the secuirty network over Ethernet and can use the same network as other Senstar devices, including FlexZone, FiberPatrol, Senstar LM100, UltraLink and UltraWave. Senstar’s Network Manager™ software conveys alarm and status information to a Senstar or third-party security/video management system (SMS/VMS).
Senstar MultiSensor is easy to install and requires virtually no maintenance. Its mounting bracket supports a range of installation options, including fence posts, walls, light/camera posts, and tower structures.
Senstar MultiSensor Cascade Plus uses Ethernet for communications and power. A low-voltage device, power is provided via PoE networked connection. PoE in/out ports enable it to be used to retrofit sites with existing network wiring.
For added network/power resliency, dual Ethernet switches may be used, ensuring continuity of protection in the event of a cable cut or device damage.
When deployed at a site managed by the Senstar Symphony️ Common Operating Platform (which is licensed separately), Senstar MultiSensor becomes a powerful tool for enhancing a security operator’s situational awareness. An operator can view alarm location on site maps, view on-map thumbnails of the most recent captured image, view live and recorded video captured by Senstar MultiSensor’s 180° image sensor, view live and recorded video from linked cameras, view real-time device status and mask or unmask the device as required.
Senstar MultiSensor Cascade Plus lowers the TCO by enabling multiple devices to share the same Ethernet network connection. Dual Ethernet channels with PoE support enable up to 16 devices to be daisy-chained together, substantially lowering network infrastructure and installation costs.

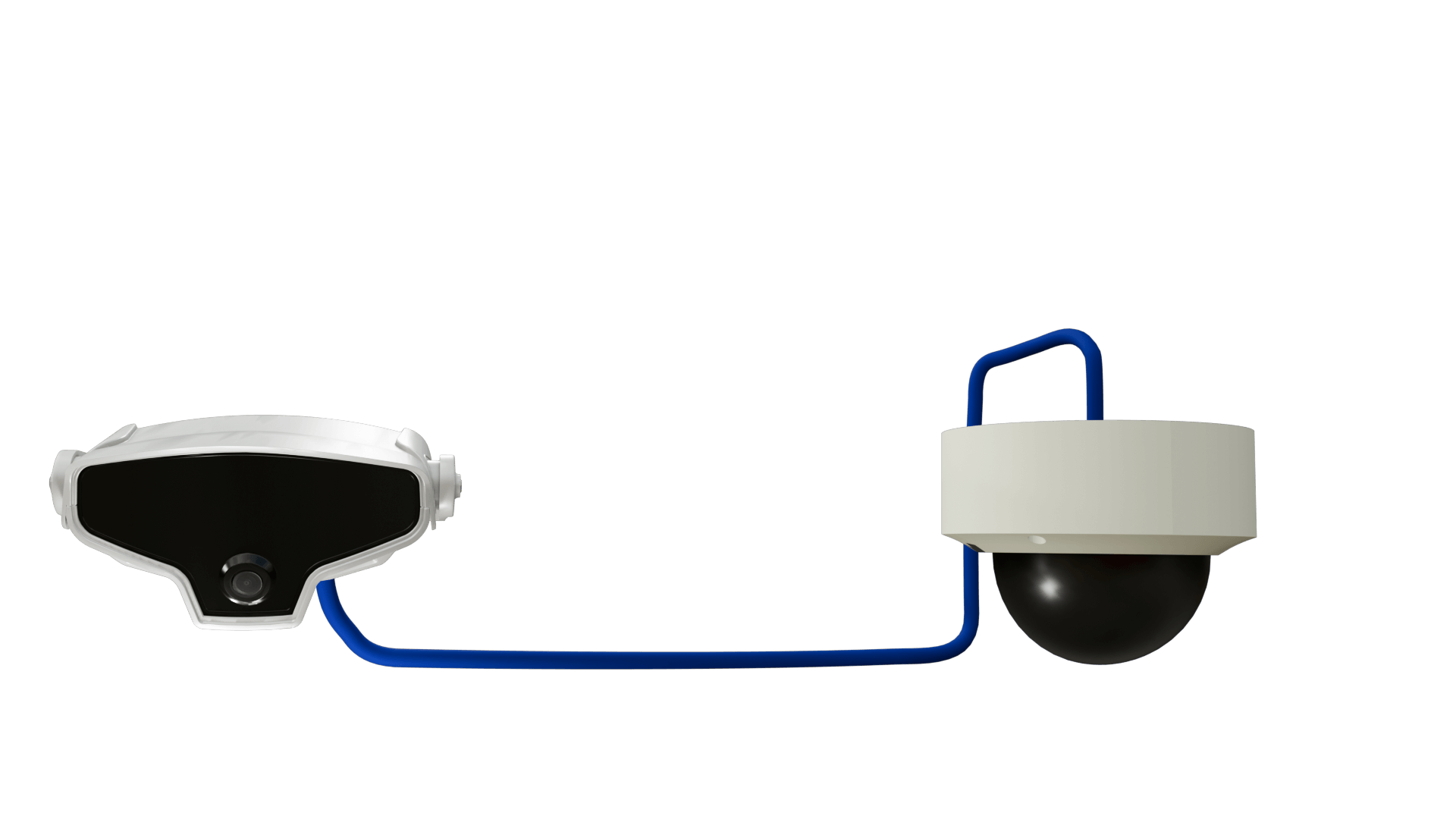

The PoE ports can also be used to connect third-party devices, including surveillance cameras, IP speakers, two-way intercoms, and security lighting. Senstar MultiSensor Cascade Plus lowers the cost of networking infrastructure and lets site owners easily upgrade the security posture of existing sites by re-purposing existing Ethernet cabling.

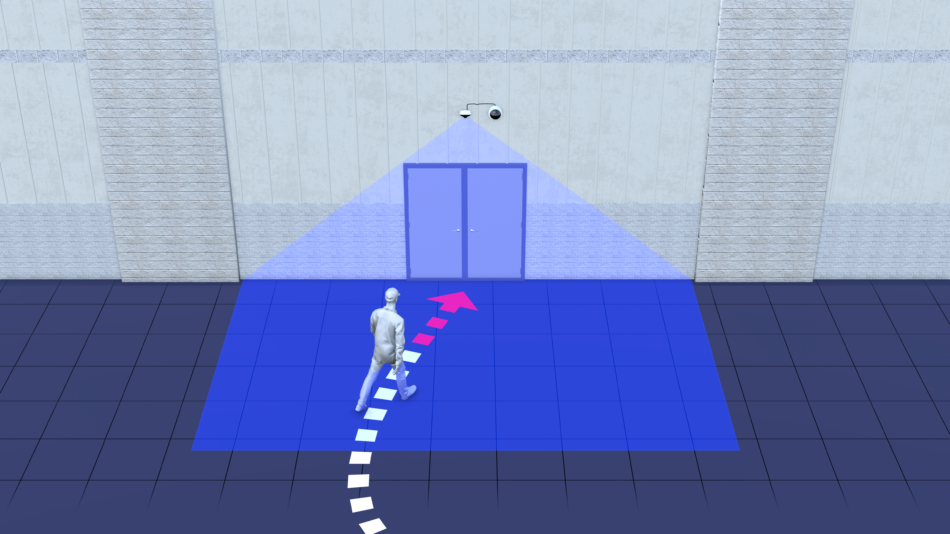

With its compact design and multi-sensing capabilities, the Senstar MultiSensor can detect activity in a wide variety of applications and provide a captured image of the covered area for improved situational awareness. The system can be used to protect critical infrastructure such as cellular masts or electrical towers as well as sally ports. Or it can be implemented above loading dock doors, on any post, wall, roof or fence.
